KNX Compact IO Overview

Weinzierl Engineering GmbH - KNX IO Overview

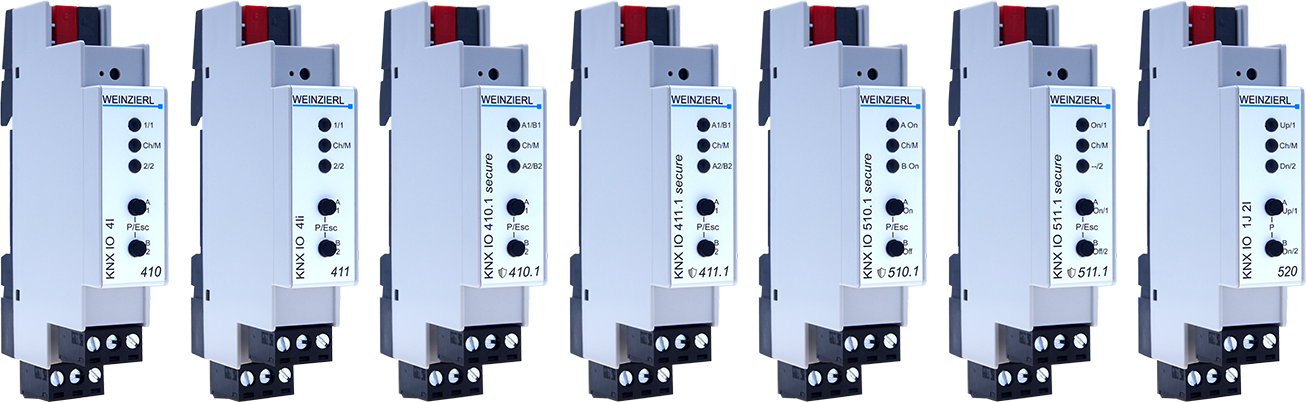

With the KNX Compact IO series, Weinzierl is expanding its product range with universal inputs and outputs for KNX with a width of only 1TE (18mm). This granularity offers maximum flexibility especially for small and medium-sized plants.

Consistent operating concept
All devices are presented with a consistent operating concept with 3 multi-colored LEDs and 2 buttons for manual operation. An easy-to-install design with screw terminals for easy plugging in and out helps reduce costs on the construction site. All devices can be configured with the ETS software without plug-ins and are characterized by short download times.

Weinzierl Knx Io Übersicht

Downloads

Price list

Where to buy

Installation

KNX IO products

Switching Actuators, Blinds Actuators and Binary Inputs

KNX IO 410 (4I)

KNX IO 410 (4I)

Compact binary input with 4 channels for controlling lights, blinds etc. The inputs can be controlled with an external voltage of 12 to 230 V.
KNX IO 411 (4Ii)

KNX IO 411 (4Ii)

Compact binary input with 4 channels for controlling lights, blinds, etc. The inputs are suitable for dry contacts (for example pushbuttons).
KNX IO 510.1 secure (2O)

KNX IO 510.1 secure (2O)

Compact switch actuator with 2 outputs. Functions for universal output, staircase lighting, heating actuator, etc.
KNX IO 511.1 secure (1O2I)

KNX IO 511.1 secure (1O2I)

Compact switching actuator with one bistable output and 2 binary inputs. This device is suitable as a KNX-capable replacement for conventional impulse switches (output: lights, input 1: push button, input 2: L for zero crossing detection).
KNX IO 520 (1J2I)

KNX IO 520 (1J2I)

Compact blinds actuator with two additional binary inputs. The device offers numerous functions including position travel over time calculation.
KNX IO 546.1 secure (1D1O)

KNX IO 546.1 secure (1D1O)

Compact dimming / switching actuator with a dimming channel for the connection of electronic ballasts (ECG) with a 0 / 1..10V interface and a relay output. The relay output can be used to switch the ECG.

Dimming Actuators

KNX IO 530 (1D2I)

KNX IO 530 (1D2I)

Compact 230V universal dimmer with one output and 2 binary inputs. The dimmer supports numerous functions (staircase, slumber) as well as phase and section and is suitable for all dimmable 230 V lamps (eg incandescent lamps, dimmable LED lamps, halogen lamps).
KNX IO 532 (1D1O)

KNX IO 532 (1D1O)

Compact dimming actuator with one output for dimming LEDs with constant voltage (PWM) and one relay output. The dimming actuator may e.g. can be used for LED panels or strips. The relay output can be used to switch the LED power supply.
KNX IO 534 CV (4D)

KNX IO 534 CV (4D)

Compact dimming actuator with 4 outputs for dimming LEDs with constant voltage (PWM). The dimming actuator may e.g. for LED panels or strips with RGB / RGBW / Tunable White configuration or as 4 independent dimming channels.
KNX IO 536 CC (4D)

KNX IO 536 CC (4D)

Compact dimming actuator with 4 outputs for dimming LEDs with constant current.
The dimming actuator can be used e.g. for LED panels or stripes with RGB / RGBW / Tunable White configuration or as 4 independent dimmer channels.
KNX IO 546.1 secure (1D1O)

KNX IO 546.1 secure (1D1O)

Compact dimming / switching actuator with a dimming channel for the connection of electronic ballasts (ECG) with a 0 / 1..10V interface and a relay output. The relay output can be used to switch the ECG.
