KNX TP Multi IO 570.1 secure

 KNX TP Multi IO 570.1 secure

The KNX TP Multi IO 570.1 secure is a universal binary interface for building control. It provides 48 input / output chanels. Each line can be used as binary input as well as binary output. The peripherals can be fed by an external voltage of 24 V⎓. Channels which are configured as inputs can be used to control lights or blinds via the KNX network. They also can be used to count impulses, e.g. as interface for energy meters. Channels which are configured as outputs can directly drive signal LEDs, external coupling relays (Multi IO Extension Switch 590) or jalousie relays (Multi IO Extension Shutter 592).

The integrated USB interface allows establishing a bidirectional connection between a PC and the KNX bus. The USB connector has a galvanic separation from the KNX bus. Both ETS (Version 5.7 or later) and visualization tools support this interface. The configuration of the device is done with ETS, a local download is possible.
An easy to read OLED display on the front panel enables a manual operation to test the installation.

The device supports KNX Data Security.



Wz Schema Knx Tp Multi Io 570.1 Secure 2025 09 30 001

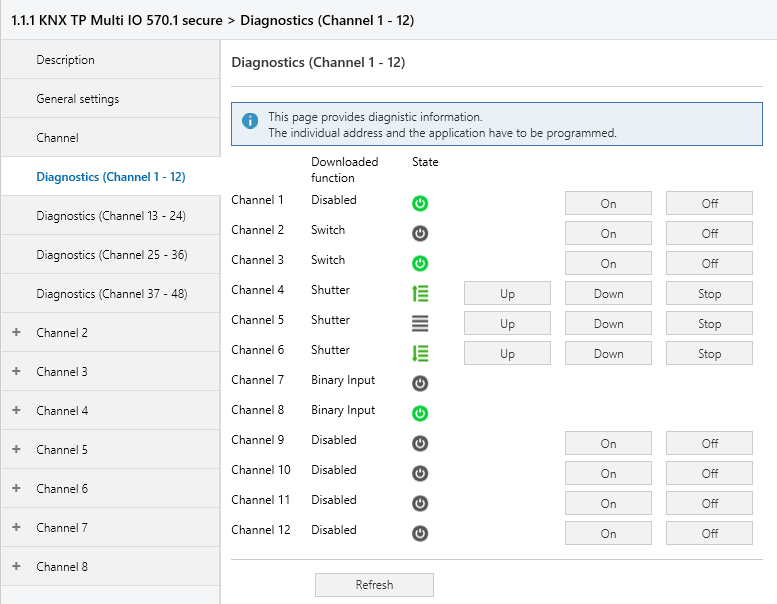

570 1 5543 Knx Tp Multi Io Secure Diagnostics En 2025 09 30

Direct manual operation with the ETS

In addition to manual operation on the device, the KNX TP Multi IO 570.1
secure also enables direct control of the channels from the parameter area of the ETS. This means that all channels can be operated individually or all at the same time. Only the physical address of the device needs to be programmed for this. No parameter settings or group addresses are required. This makes it possible to switch the outputs or drive the shutters directly with the ETS – even in remote maintenance. The advantage of this is that testing the individual channels does not require a download each time.

Technical data

 Mechanical data

  • Housing: plastic
  • DIN rail mounted device, width: 4 modules (72 mm)
  • Weigth: approx 200 g

Controls and indicators

  • LED display with four buttons
  • KNX programming LED

Power Supply

  • KNX Bus approx. 6 mA
  • Power Supply for I/O lines: 24 V⎓, ca. 25 mA with no load

KNX

  • Medium TP
  • Long Frame
  • Device model: System B
  • Compatible with ETS 5.7 (or higher)
  • KNX Security

Connectors

  • Connector for KNX Bus (red / black)
  • Pluggable screw connector (4 poles) for power supply
  • Pluggable screw connector (12 poles) for I/O lines
  • USB: Connector type C

I/O lines

  • Output: Open-Drain, max. 100 mA, incl. flyback diode
  • Input: Incl. pull-up resistor
