KNX LineCoupler 650.1 secure

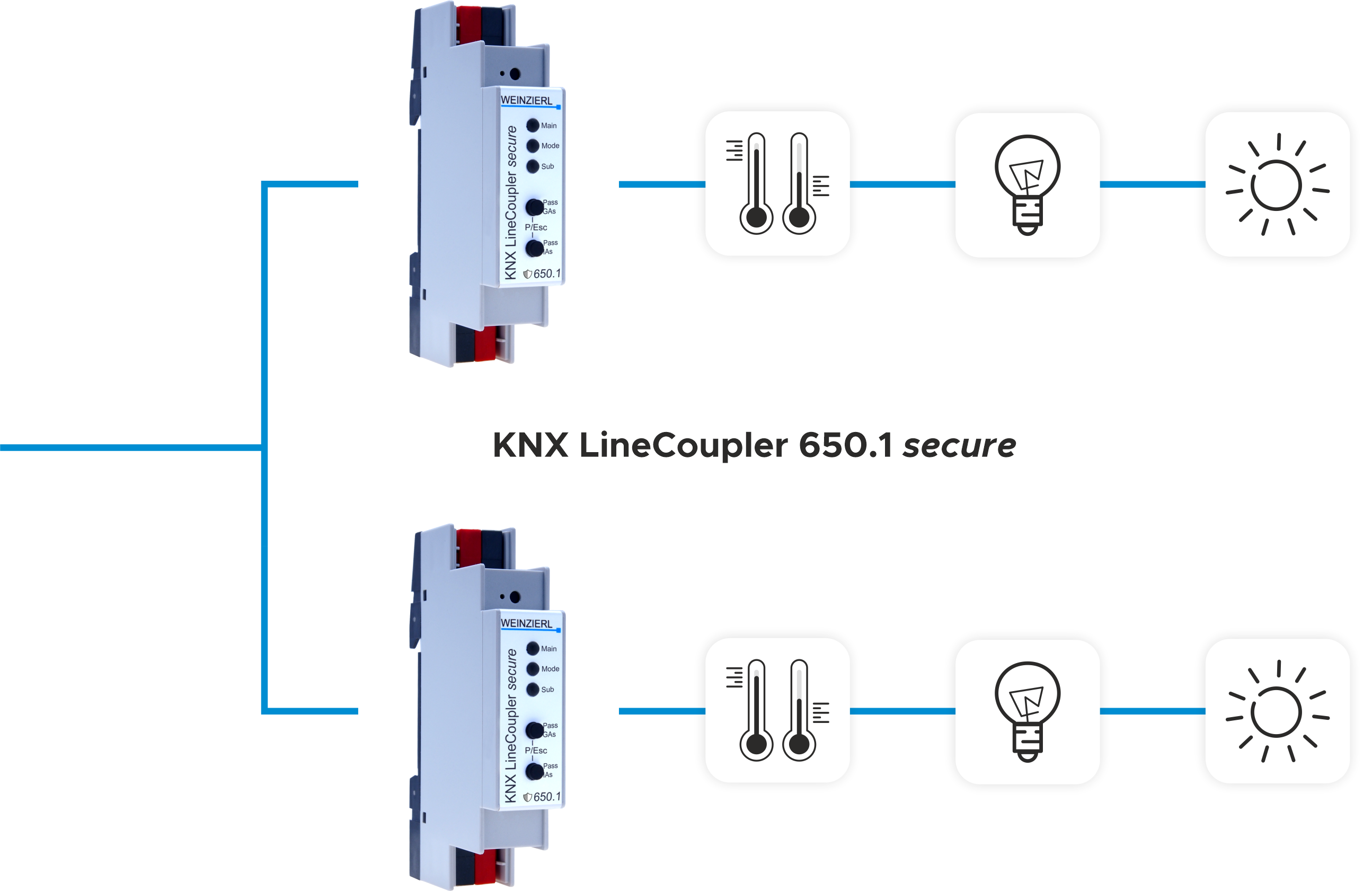

The KNX LineCoupler 650.1 secure is a KNX line coupler in a compact design. It connects two KNX bus segments (for example, a KNX line with a KNX area).
The device has an extended filter table for main group 0…31 and ensures a galvanic isolation between the lines. The coupler supports KNX Data Security and KNX Long Frames. It is compatible with the ETS® software ETS 5 or higher. The functionality of Security Proxy and Segment Coupler is only supported with the ETS 6 database.
The buttons on the front panel allow disabling the telegram filter for testing purposes. The LEDs indicate operating conditions as well as communication errors on the KNX bus.
The power is supplied via the KNX bus (main line).
Art.-Nr.
5451
EAN 4260262774514
Technical data
Mechanical data
- Housing: plastic
- DIN rail mounted device, width: 1 module (18 mm)
- Weigth: approx 40 g
User Interface
- two keys for on device settings
- three multi color LEDs
- KNX programming LED and KNX programming key
KNX
- Medium TP/TP
- Extended filter table for main group 0..31
- Buffer: 2 x 50 telegrams
- KNX Long Frames
- KNX Security
(incl. Security Proxy with ETS 6) - KNX Segment Coupler (with ETS 6)
Power supply
- KNX main line approx. 5 mA
- KNX sub line approx. 3 mA
Connectors
- Connector for KNX-TP main line (red/black)
- Connector for KNX-TP sub line (red/black)
