Weinzierl wishes you a great summer season

To make your summer even safer and more enjoyable we have some new devices for you! As you know, we are one of the pioneers in KNX Security and due to new regulations like the NIS2 or the Cyber Resilience Act (CRA), installers can no longer ignore security. Today we would like to introduce two of our current highlights. Both dimming actuators in our Compact IO series are now secure: One for 230 V~ mains voltage and one for extra low voltage PWM.

Wz Security 2025 07 28 003 En
Weinzierl 530 1 Knx Io 5516 M

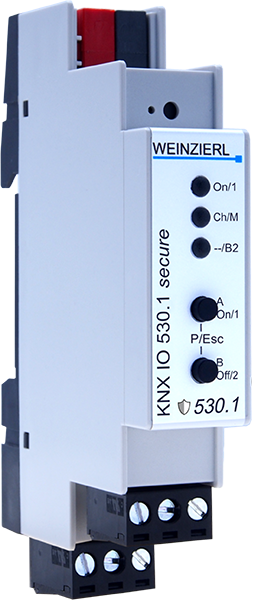

KNX IO 530.1 secure

– Dimming actuator 1-fold
– For 230 V~ mains voltage
– Phase cutting leading or trailing edge
– Scenes, sequences, staircase &
snooze function
– Integrated logic und timers
– For DIN rail, 1 unit (18 mm)

Weinzierl 532 1 Knx Io 5503 M

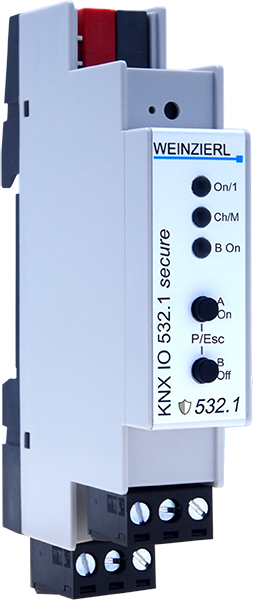

KNX IO 532.1 secure

– Dimming actuator 1-fold
– For 12..24 V⎓
– PWM output
– Scenes, sequences, staircase &
snooze function
– Integrated logic und timers
– For DIN rail, 1 unit (18 mm)

Expand your portfolio with KNX Security

Also our products for developers will be enhanced by KNX Security. The first module supporting KNX Security is now available:
The KNX BAOS Module 830.1 secure is the successor of our well-tried KNX BAOS Module 830. It is mechanical and electrical compatible. It now supports KNX Security as well as BAOS Security which protects the communication with the host controller.
The module has galvanic isolation and can be used to easily develop or upgrade KNX devices (e.g. sensor, actuator or gateway) with low investment.

Weinzierl 830 1 Knx Baos Module 5499 M

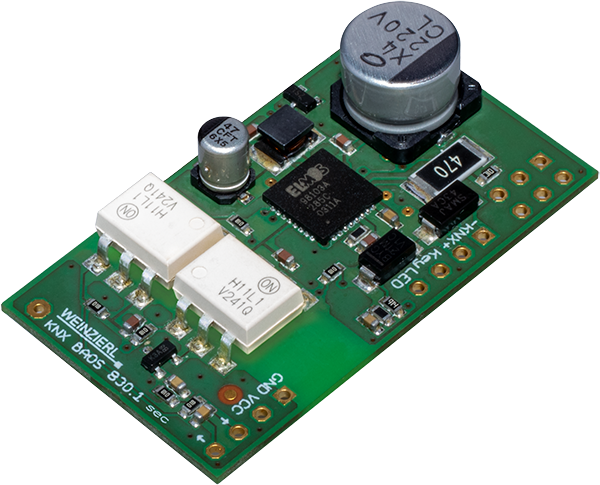

KNX BAOS Module 830.1 secure

– Certified KNX Stack TP
– Supporting KNX Data Security
– Up to 1000 data points
– Generic ETS entry available
– Individual ETS entry possible
– BAOS protocol via UART
– Galvanic isolation

New tutorial videos

High-value KNX integrations sometimes can be challenging. To help you with these complex topics, we have created numerous tutorial videos, which you can find on our website and on YouTube.
Three new online courses explain our gateway solutions for integrating KNX with other systems, such as DMX and Modbus, free of charge:

Tcp Tutorial 2025 07 28 002
Dmx Tutorial 2025 07 28 004
Rtu Tutorial 2025 07 28 002

With this small taste of our numerous new products, we would like to wish you a wonderful summer.
Note: We are not taking a summer break and are always available for you.
